EPIC® high-performance connectors Powerful connections for every challenge
When machines communicate with each other, robots perform precise movements or wind turbines feed electricity into the grid, it is often powerful connections in the background that make everything possible: such as EPIC® connectors from LAPP.
www.lapp.com

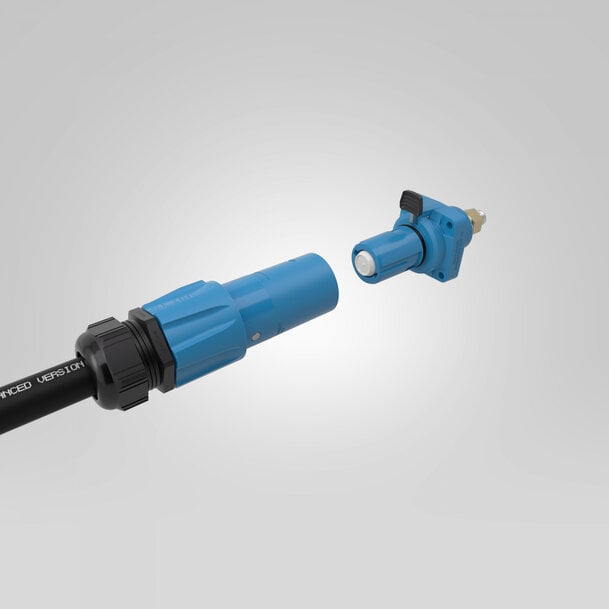

Applications with extreme currents – EPIC® POWERLOCK
With a current carrying capacity of up to 660 A, the EPIC® POWERLOCK is one of the most powerful single-pole connectors in its segment. This system was recently redesigned by LAPP. The round connector is now available in the new POWERLOCK version, which significantly simplifies assembly, assembly, and unlocking.
The core feature is the newly developed mechanism with a fully integrated slider, which allows release without the need for special tools. This makes handling easier and prevents improper disconnection of the plug connection.
The contacts inside have also been redesigned: instead of different variants – depending on the conductor cross-section – the new POWERLOCK uses a single cone-shaped axial screw contact that automatically fans out the strands when inserted. This allows diameters from 35 to 240 mm² to be reliably connected. The combination of mechanical and color coding minimizes the risk of incorrect connections and enables clear assignment of the conductors.
With its high current-carrying capacity, IP-protected design, and reliable locking mechanism, EPIC® POWERLOCK is particularly suitable for industrial distribution systems, test benches, and mobile power supply solutions.

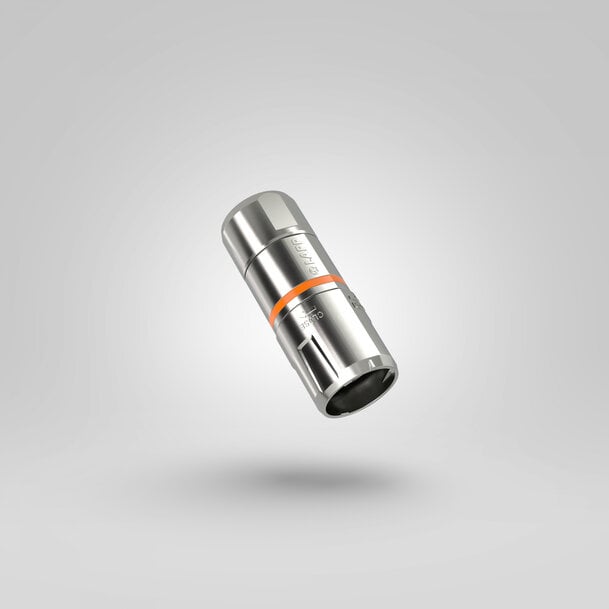

Resilient solutions for powerful motors – EPIC® M23 Power with Quickflex technology
The circular connector combines high electrical load capacity with an innovative tool-free locking system.
With the EPIC® M23 Power Quickflex, LAPP presents a circular connector that combines high electrical resilience with an innovative tool-free locking system. This connector sets new standards in connection technology for servo motors, automation technology, and demanding industrial applications.
Thanks to integrated Quickflex technology, the EPIC® M23 Power offers maximum flexibility. Variable pole configurations and modular interchangeable inserts enable easy adaptation to different power requirements and device configurations. This not only facilitates quick conversion in the field, but also offers new possibilities in system planning – especially for applications that require high current carrying capacity in limited space.
The robust design of the connector, combined with its high vibration and temperature resistance, makes it ideal for drive and automation solutions, robotics systems, and mobile machines.
For lightning-fast communication – EPIC® ClickConnect
With the new EPIC® ClickConnect technology, LAPP offers a compelling solution for the increasing demands and accelerated installation and maintenance processes in industrial production. The push-pull solution for M12 patch cords and cord sets relies on a completely tool-free locking system and opens up a new dimension in efficiency, safety, and reliability for users in automation, mechanical engineering, and industrial communication.
The focus is on tool-free locking based on a mechanical locking mechanism. The connection locks automatically with a simple push-fit. The resulting haptic and acoustic feedback ensures a reproducibly secure connection. Unlocking is just as easy by pulling on the integrated release element. The system thus significantly reduces installation times and is optimized for use in compact installation environments where conventional screw or clamping mechanisms are only accessible to a limited extent.
Thanks to its ease of use and minimized susceptibility to errors, EPIC® ClickConnect is particularly suitable for applications where maintenance intervals are short and production downtimes are critical.
Bundled expertise in the field of connectors
With the new products presented, LAPP underscores its role as a leading supplier of connection technology for industry. The EPIC® series stands for maximum reliability, versatile application possibilities, and advanced technology—properties that are indispensable in modern automation.
