Transparent Conductive Film Targets EMI Shielding

Panasonic Industry has introduced FineX, a transparent conductive film designed to provide electromagnetic interference (EMI) shielding while maintaining high optical transparency. The material is intended for applications such as industrial displays, touch interfaces and wireless communication environments where both visibility and electromagnetic control are required.

The film uses a metal-mesh architecture to combine electrical conductivity with optical performance.

Copper Metal-Mesh Structure
FineX is based on Panasonic’s ultra-fine copper metal-mesh microfabrication technology. The mesh consists of precisely patterned conductive lines forming a uniform wiring structure across the film.

This design provides low electrical resistance while maintaining high optical transmissivity. Because the conductive network is extremely fine, the mesh remains visually unobtrusive when integrated into display or glass surfaces.

The conductive structure also supports stable current flow and can be used in applications requiring uniform heating or conductive transparent layers.

EMI Shielding for Sensitive Electronics
Transparent EMI shielding materials are used to reduce electromagnetic noise that may interfere with electronic systems. In display devices, shielding layers help protect touch sensors, wireless communication modules and control electronics from external interference.

FineX enables electromagnetic shielding without requiring a dedicated power supply or electrical connection, making it suitable for passive EMI control in electronic systems.

The mesh pattern can be customized to meet different shielding or design requirements while minimizing diffraction effects that may otherwise impact display clarity.

Flexible Film for Complex Surfaces
The conductive film is manufactured using thin flexible materials that allow it to bend without damaging the conductive mesh structure. This enables installation on curved or non-flat surfaces such as shaped glass panels or industrial equipment interfaces.

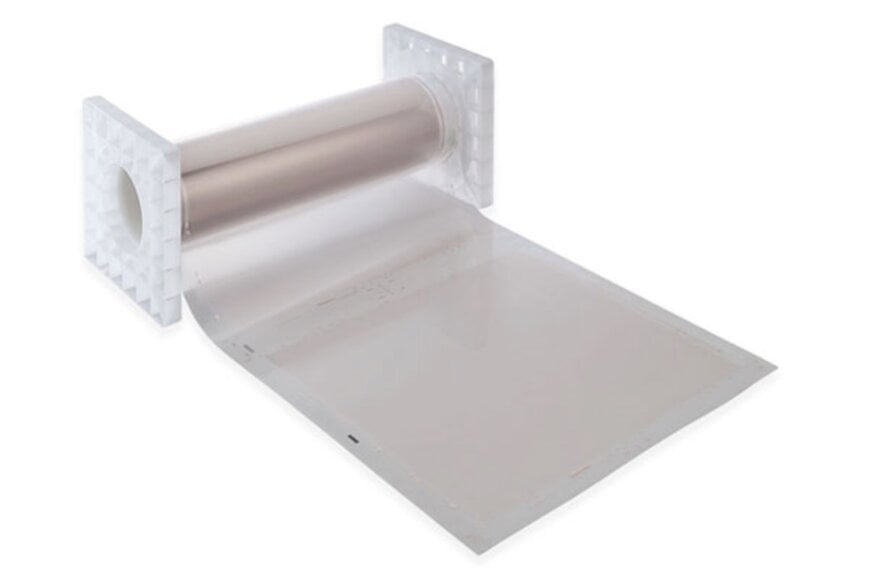

The film is supplied in roll format with pre-applied optical clear adhesive (OCA). The integrated adhesive layer allows bubble-free lamination and simplifies the manufacturing process by reducing additional assembly steps.

Applications in Display and Wireless Systems
FineX is intended for several categories of electronic applications. In display systems, the film can provide transparent shielding for monitors, touch panels and industrial human–machine interfaces.

In wireless environments, the material can help control radio wave propagation. Examples include improving detection accuracy in RFID systems by restricting signal zones and reducing interference in Wi-Fi or other wireless communication networks.

By combining transparency, conductivity and design flexibility, the film addresses applications where optical clarity and electromagnetic shielding must coexist within electronic devices and industrial systems.
