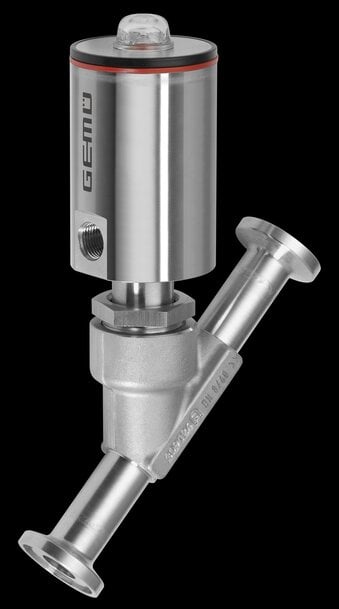

Compact globe valve expands low-pressure automation range
GEMÜ extends S40 globe valve series with actuator size 0 to improve control in compact systems and low-pressure industrial applications.
www.gemu-group.com
GEMÜ has expanded its S40 globe valve series by introducing actuator size 0, targeting applications with small nominal diameters, limited installation space, and high switching frequency requirements.
Technical context and relevance
Industrial fluid control systems in sectors such as laboratory processing, sterilization, and small-scale process engineering require valves that operate reliably under low to medium pressures while maintaining compact dimensions. Conventional globe valves often present limitations in space-constrained environments or in applications requiring rapid actuation cycles.
The extension of the S40 series addresses these constraints by introducing a smaller actuator configuration without altering the overall system architecture of the valve platform.
Technical characteristics and system design
The GEMÜ S40 globe valve is designed for nominal sizes ranging from DN 6 to DN 80 and operating pressures up to 40 bar. The addition of actuator size 0 introduces a configuration optimized for:
- Reduced installation footprint
- High switching frequency
- Fast response times in actuation cycles
The actuator size 0 variant is engineered to support frequent open-close operations while maintaining mechanical stability and sealing performance. This is particularly relevant in automated environments where cycle times directly influence process throughput.
The valve design incorporates a maintenance-friendly structure, enabling easier access to internal components and reducing downtime during servicing. Operational safety is supported through consistent actuator control and predictable valve behavior under varying pressure conditions.
Integration and implementation
The S40 series is part of a broader valve platform that integrates with automated process control systems. The compact actuator enables easier installation in confined assemblies such as autoclaves or laboratory skids, where spatial constraints limit the use of standard actuator sizes.
The modular actuator range (sizes 0 to 6) allows system designers to select configurations based on specific process parameters, including flow rate, pressure range, and actuation frequency. This modularity supports compatibility with existing piping systems and control interfaces.
Application areas and use cases
The actuator size 0 configuration is suited for:
- Laboratory systems requiring precise and frequent fluid control
- Autoclave processes with repetitive sterilization cycles
- Compact process units with limited installation space
- Low-pressure industrial fluid handling systems
In these contexts, rapid switching capability contributes to improved cycle efficiency, while the compact design supports higher system density.
Expected impact on performance
The introduction of a smaller actuator size enables more efficient system design by reducing space requirements and supporting high-frequency operation. This can lead to shorter process cycles and improved equipment utilization.
From a system integration perspective, the extended actuator range enhances flexibility in valve selection, allowing closer alignment between valve performance characteristics and application-specific requirements. This contributes to more stable process control and reduced mechanical stress over repeated cycles.
Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.
