High-Payload Industrial Robots for Heavy Material Handling

The growing size and weight of industrial components are driving demand for robots capable of handling heavy loads without compromising precision or productivity. To address this trend, Yaskawa has added the MOTOMAN GP215L industrial robot to its GP series, expanding its portfolio for heavy-duty material handling, material transport, and large-scale assembly operations in industries including automotive manufacturing, machinery production, steel fabrication, and electric vehicle component manufacturing.

215 kg robot for large components

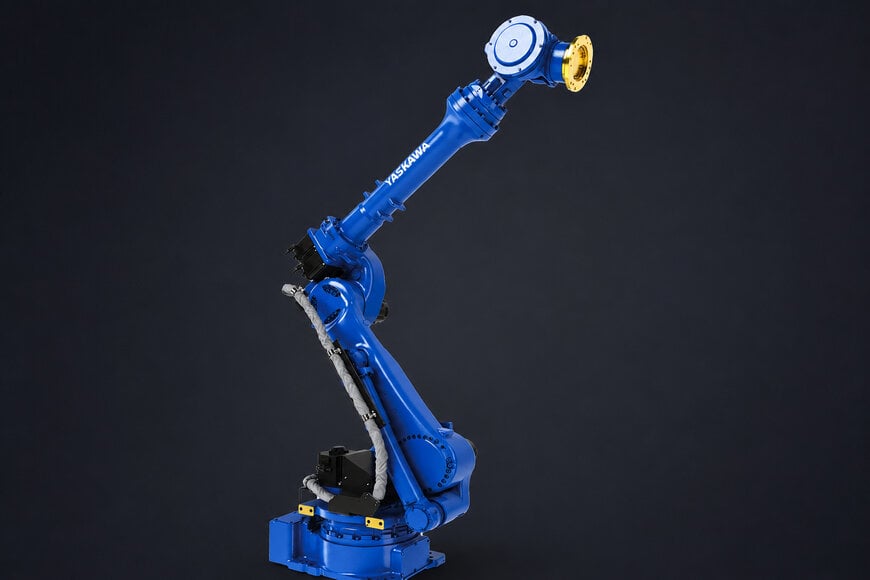

The new six-axis robot offers a 215 kg payload and a maximum horizontal reach of 3,114 mm, making it suitable for handling frames, cast components, battery packs, tooling, and other large workpieces. The design also incorporates an additional 30 kg payload capacity on the U-arm, providing greater flexibility for integrating tools and auxiliary equipment.

These capabilities expand the robot's operating range in applications where the combination of reach and payload is essential for optimizing robotic cell layouts and reducing intermediate material handling operations.

Increased wrist dynamic capacity
One of the GP215L's key advancements is its improved allowable dynamic wrist load capacity. Thanks to an optimized mechanical structure, the robot increases allowable torque and inertia values by up to 44% compared with equivalent previous-generation models, enabling larger tools and heavier workpieces to be handled with greater stability and precision.

This improvement is particularly valuable in applications where tool size or uneven mass distribution generates high inertia during robot motion.

Precision and protection for industrial environments
The GP215L retains the characteristics that define the GP series for high-speed industrial handling applications. The robot provides a repeatability of ±0.1 mm, making it suitable for processes requiring high positioning accuracy.

Its construction features an IP54 protection rating for the robot body and IP67 protection for the wrist, allowing reliable operation in environments exposed to dust, moisture, and process fluids.

Despite its high payload capacity, the robot maintains a compact design that simplifies integration into both new robotic cells and existing production lines while helping manufacturers optimize available floor space.

Applications in automotive and advanced manufacturing
The GP215L has been developed to address the increasing size of vehicle bodies, structural castings, electric vehicle battery packs, and other large mechanical assemblies used in modern manufacturing.

Typical applications include:

The combination of long reach, high payload capacity, and increased mechanical capability enables more flexible robotic cell designs while reducing the limitations associated with handling large and heavy components.

Expansion of the high-payload robot portfolio
With the introduction of the GP215L, Yaskawa expands its portfolio of robots for heavy-duty material handling alongside other high-payload models introduced during 2026, reinforcing its strategy to support applications involving increasingly large and heavy industrial components.

Additional Context
This section presents technical specifications and a comparison with competing products that are not included in the original product announcement.

The high-payload industrial robot market is experiencing continued growth, driven by vehicle electrification, larger structural castings, and the increasing automation of heavy material handling processes. Manufacturers including ABB, KUKA, FANUC, and Yaskawa offer six-axis robotic platforms for these applications. Within this market, the GP215L stands out by combining a 215 kg payload, a 3,114 mm reach, and up to a 44% increase in wrist dynamic capacity, while competing platforms such as KUKA's KR QUANTEC family emphasize modular configurations with different combinations of reach and payload to support a broad range of industrial applications.
