Portable Ultrasonic Systems for Non-Intrusive Liquid Flow Diagnostics

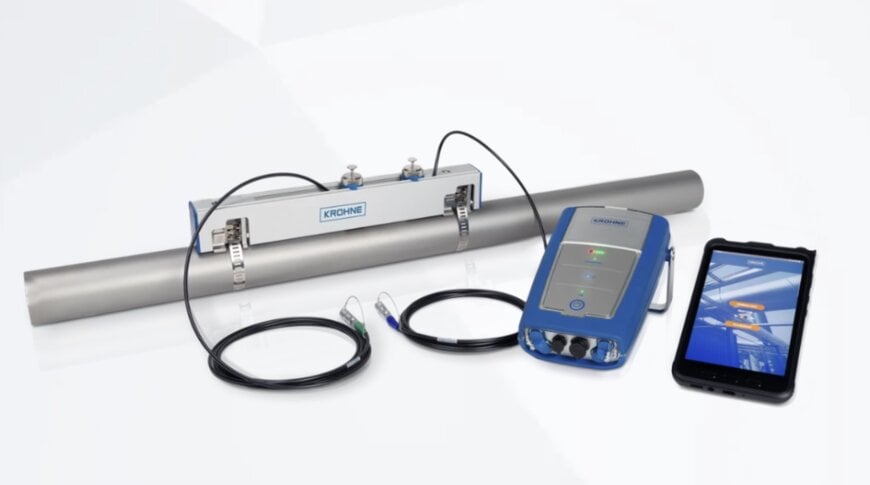

KROHNE has introduced the OPTISONIC 6300 P, a portable, battery-powered ultrasonic clamp-on flowmeter designed for the temporary measurement of conductive and non-conductive liquids. The system provides process instrumentation engineers across the chemical, water management, and energy sectors with a tool for on-site verification and data collection without cutting pipes or halting operations.

Operational Range and Physical Specifications
The non-intrusive clamp-on architecture is engineered to measure bi-directional flow in pipe diameters ranging from DN15 to DN4000 (0.5 to 160 inches) and can withstand process temperatures up to +120°C (+248°F). This structural flexibility allows plant operators to perform comparative measurements on stationary equipment, such as pumps and inline flowmeters, or temporarily bypass faulty continuous-measurement devices. A battery-powered signal converter equipped with an integrated data logger facilitates real-time flow measurement and stores historical data for later analytical review.

Sensor Configuration and Application Setup
The flowmeter utilizes a two-channel converter capable of processing dual-path or dual-pipe measurements, which enhances accuracy in complex or asymmetric flow profiles. Physical installation is managed via mounting rails featuring a click-and-turn fixing mechanism, allowing technicians to adapt the sensor placement to varying pipe materials and dimensions. For environments requiring thermal energy monitoring, the device integrates with PT100 temperature sensors and an external I/O box to calculate energy consumption metrics directly at the measurement site.

Digital Integration and Mobile Telemetry
Configuration and operational control are centralized through a dedicated mobile application, compatible with both Android and iOS operating platforms. Technicians connect their mobile devices to the system using either a hardwired USB cable or a secure Bluetooth wireless link. The software incorporates a graphical installation wizard to standardize setup procedures, alongside diagnostic tools to monitor, analyze, and store fluid dynamics data. The hardware is transported in either a hard flight case or a soft case with organizer trays, optionally supplemented by magnetic fixation units, cable extensions, a thickness gauge, and a factory-configured tablet.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

In the industrial process instrumentation sector, portable ultrasonic flowmeters are evaluated based on transit-time measurement precision, transducer frequency adaptability, and deployment speed. The OPTISONIC 6300 P competes with established portable diagnostic systems such as the Panametrics TransPort PT900 and the Flexim FLUXUS portable series. Benchmarking these technologies typically centers on the ability to handle highly aerated liquids, the durability of the coupling mechanism, and native dual-channel processing capabilities. By standardizing dual-path measurement and accommodating pipe diameters up to DN4000, this system addresses heavy-industrial use cases that require verifying large-scale electromagnetic or vortex flowmeters without inducing pressure drops or requiring pipeline modifications.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
