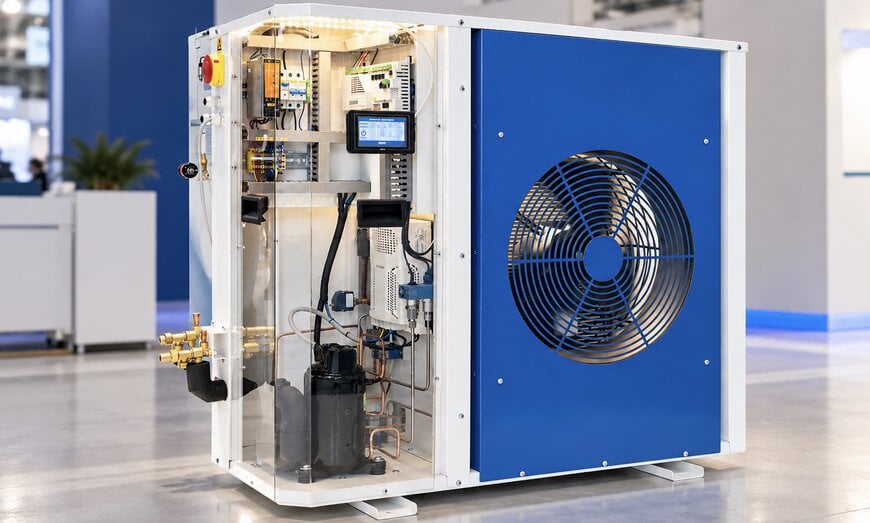

CO2 Condensing Architecture for Commercial Refrigeration

SANHUA has released a standardized CO2 condensing unit package to streamline the transition to natural refrigerants for original equipment manufacturers in the commercial refrigeration industry. This integrated hardware and control solution consolidates system development for carbon dioxide (R744) applications by packaging critical mechanical and electronic components together.

Component Integration for R744 Applications
As the commercial refrigeration industry shifts toward natural refrigerants, engineers face complexities in managing the high operating pressures of R744 systems. The newly developed package addresses this by combining a range of carbon dioxide line components, sensors, electronic expansion valves (EEVs), compressor drives, and controls into a single architecture. By sourcing these integrated components together, original equipment manufacturers (OEMs) can simplify system development, reduce engineering overhead, and accelerate their time-to-market.

Compressor Control and System Connectivity
At the core of the condensing unit package is a specialized controller, developed in partnership with a Danish control technology firm. This controller supports both single- and dual-stage compressor applications, integrating directly with the system's EEVs. To maintain safe operation and manage refrigerant flow during power disruptions, the hardware features integrated EEV backup power. The control unit also incorporates extensive networking capabilities, including RS485 communication, Ethernet, and Wi-Fi connectivity. These protocols enable cloud integration and smartphone-based monitoring, facilitating faster commissioning and remote system diagnostics for service technicians.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

CO2 (R744) refrigeration systems operate at significantly higher pressures—often exceeding 100 bar during transcritical operation—compared to traditional hydrofluorocarbon (HFC) systems. Consequently, OEMs require specialized, high-pressure-rated valves and controllers capable of managing these parameters. In the commercial refrigeration component market, this integrated package competes with control and valve ecosystems from Danfoss, Carel, and Copeland.

While many OEMs traditionally assemble systems using discrete components from multiple suppliers, providing a pre-integrated package with built-in EEV backup power and matched compressor drives minimizes the validation testing required for component interoperability. Furthermore, the inclusion of dual-stage compressor support addresses the specific requirements of medium- and low-temperature supermarket refrigeration, which rely on precise, continuous control logic to manage flash gas bypass and optimize overall transcritical system efficiency.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
