Bosch Presents New Thermal Camera

Predictive maintenance, electrical switchgear testing, and building envelope energy audits demand precise non-contact thermal inspection to detect micro-faults before structural breakdown or catastrophic failure occurs. Traditional portable thermography equipment frequently faces limitations, including constrained battery runtimes, proprietary chargers, restricted thermal dynamic spans, and low spatial sensor resolutions that obscure subtle temperature gradients behind complex mechanical assemblies. Resolving these operational bottlenecks requires high-resolution infrared detectors coupled with intelligent digital post-processing and standardized cross-tool battery ecosystems.

High-Resolution Thermal Sensing and Neural Enhancement

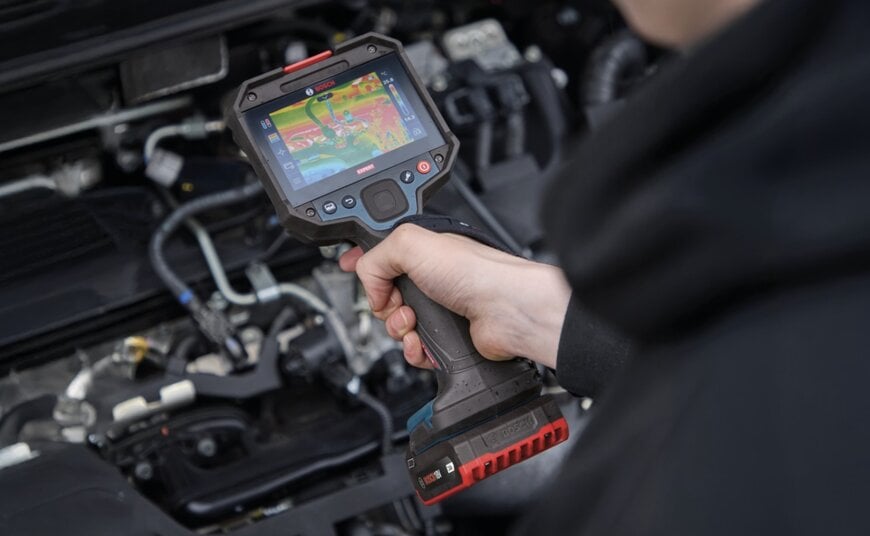

Bosch introduced the EXPERT EXTC18V-650-17C thermal camera alongside the companion PRO GTC18V-600-16C model, establishing the company’s first thermography instruments operating on a standard 18V power tool battery platform. The EXPERT unit incorporates an uncooled infrared focal plane detector delivering a native resolution of 384 x 288 pixels, scanning across a thermal measurement span from -30 °C to +650 °C.

To improve spatial interpretation without physical detector scaling, the system incorporates AI Image Boost technology. When engaged on a frozen frame, a specialized neural network processes the captured raw radiometric array, interpolating fine thermal boundaries to generate four times more measurement points than the unassisted sensor. Compared to standard baseline tools, the combination of native sensor density and activated AI processing produces up to eight times more active measurement points than the PRO GTC18V-600-16C, resolving fine heat patterns across electrical busbars, engine manifolds, and building insulation interfaces.

Jobsite Ergonomics, Ruggedization, and Interface Options
Built for high-demand industrial environments, the instrument features a 4.3-inch touchscreen paired with a physical joypad to facilitate operation while wearing heavy protective work gloves. Users can set up to five discrete measurement spot points directly on the screen, edit radiometric captures on the fly, and attach spoken audio annotations to documented images.

The camera housing is protected by a 360-degree reinforced rubber overmold capable of surviving drops from up to two meters, certified to Ingress Protection rating IP54 against airborne dust and splashing water. For simultaneous surface contact evaluation, an integrated Type-K thermocouple socket connects directly to external temperature probes. Captured datasets transfer wirelessly to mobile devices via integrated Wi-Fi using the Bosch ThermalOn app, or export over a physical USB-C port to PC environments running the free GTC Transfer Software for formal reporting and archiving.

Multi-Brand Power Ecosystem Integration
The tool operates directly on Bosch's Professional 18V System and shares compatibility across the multi-brand AmpShare Alliance. This common battery standard allows service engineers, HVAC contractors, and industrial technicians to interchange 18V lithium-ion batteries and chargers seamlessly between diagnostic measuring instruments and mechanical power tools, reducing field support equipment and tool-bag volume.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

In industrial thermography, thermal imaging camera performance is evaluated by thermal sensitivity, measured as Noise Equivalent Temperature Difference (NETD). The EXTC18V-650-17C achieves an NETD of 40 millikelvins or better alongside a 25 Hz refresh rate, allowing smooth real-time scanning and differentiation of temperature deltas down to 0.1 °C. Compliance with ISO 18434-1 guidelines for non-destructive thermal testing mandates measurement accuracies within ±2.0 °C or ±2 percent across operational spans, a tolerance verified on the device using an onboard optical sight laser and LED illumination for spatial frame referencing.

Within the professional portable thermal imaging market, instruments in this tier benchmark against dedicated inspection systems such as the FLIR E8 Pro and Fluke Ti401 PRO. While dedicated metrology-grade thermography cameras frequently deploy proprietary battery enclosures requiring standalone charging stations, integrating a 384 x 288 uncooled microbolometer into a cross-brand power-tool battery platform aligns field diagnostic instruments with broader plant maintenance tool ecosystems. Furthermore, onboard neural super-resolution processing addresses common physical constraints in uncooled microbolometers, generating synthetic radiometric grid density without the added size, weight, and component cost of larger optical objective lenses.

Edited by Romila DSilva, Induportals Editor, with AI assistance.
