Laser scanners for 2D/3D profile measurements

Laser scanners from Micro-Epsilon are among the highest performing profile sensors in the world with respect to accuracy and measuring rate. They detect, measure and evaluate profiles on different object surfaces without contact. The available models are suitable for numerous industrial applications. The integrated intelligence in their sensor head (scanCONTROL SMART) solves versatile measurement tasks. Models for the customer’s own programming are available for integrators. The scanCONTROL profile scanners do not require any external controller.

Laser scanners for 2D/3D profile measurements

Characteristics

Laser scanners for 2D/3D profile measurements
Typical measured values:

Laser scanners for 2D/3D profile measurements
Profile, width, height, depth, edge, groove, bead, gap, angle, roundness, presence, flatness, deformation, flushness etc.

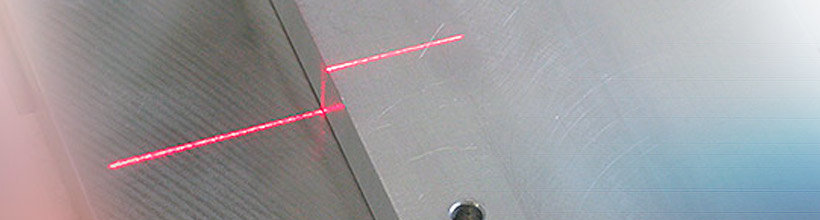

Profile scanners with red laser and patented Bue Laser scanners
Laser scanners from Micro-Epsilon are available with a red laser diode or with the patented Blue Laser Technology. Laser scanners with blue laser line are preferably used for profile measurements on red-hot glowing metals, as well as transparent and organicsurfaces. While allowing significantly higher stability, the blue-violet laser beam does not penetrate the measuring object.

Laser scanners for 2D/3D profile measurements
Measurement tasks involving blue laser scanners measuring on red-hot glowing measurement objects exceeding 700 °C and transparent objects such as glass and plastics are protected by patent law. The scanCONTROL laser scanners achieve excellent signal stability and thus precise measurement results on these surfaces.

Laser scanners for 2D/3D profile measurements
Compact profile sensors
Compact size combined with low weight opens up new fields of application in profile measurement. The controllers of the scanCONTROL profile sensors being integrated in the housing simplify cabling arrangements and mechanical integration. Due to their compact size and their high profile frequency, the laser profile sensors are ideally suited to dynamic measurement tasks, e.g. in the production control or for robot mounting processes.

Flexible integration with four different classes

Laser scanners for 2D/3D profile measurements
Intelligent SMART scanner: large range of features for numerous measurement tasks

Laser scanners for 2D/3D profile measurements
Various possibilities for data transmission
The sensors can be easily integrated into an existing customer software either via the available SDKs or the GigE Vision Standard which all scanCONTROL sensors meet (integration into image processing software). The sensors of the scanCONTROL SMART classes can directly transfer the measured values to the control systems using the following interfaces:

  • Ethernet (UDP or Modbus TCP)
  • RS422 (ASCII or Modbus RTU)
  • Analog, digital switching signals (with scanCONTROL Output Unit)
  • Profinet, Ethernet/IP, EtherCAT (with scanCONTROL Gateway)
