Layer 3 Fiber Switch Consolidates Industrial Network Distribution

Industrial environments such as water treatment plants, oil and gas facilities, and transportation hubs rely on highly distributed networks. As the volume of connected devices grows, from high-resolution surveillance cameras to environmental sensors, network distribution points face significant bottlenecks. Traditionally, engineers must deploy multiple discrete devices within a single cabinet, requiring a fiber aggregation switch to handle long-distance data runs, a dedicated power distribution switch for local endpoints, and a separate router to manage traffic across network segments. This fragmented approach increases hardware costs, complicates maintenance, and consumes physical space within climate-controlled enclosures.

Consolidating fiber aggregation and high-power distribution

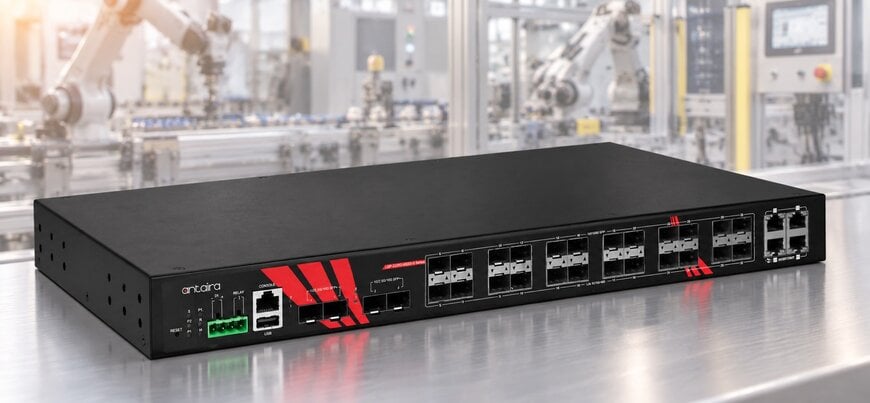

To address these infrastructure challenges, Antaira Technologies has developed the LMP-3228G-4X24S-bt-T, a managed Layer 3 Ethernet switch designed to consolidate these distinct functions into a single industrial-grade platform. The system is engineered for typical distribution site layouts, where the majority of data arrives via noise-immune fiber optics while proximate devices require substantial electrical power over copper cabling. By integrating 24 Gigabit SFP slots, the switch aggregates incoming fiber connections from remote cabinets. Simultaneously, four 10G SFP+ slots provide a high-bandwidth backbone, ensuring that aggregated uplinks do not throttle data transmission as the density of programmable logic controllers increases across the facility.

Beyond data aggregation, the hardware incorporates four IEEE 802.3bt PoE++ ports capable of delivering up to 100 watts of power each. This high output allows the switch to directly drive energy-intensive edge devices, such as pan-tilt-zoom cameras equipped with internal heaters or multi-radio wireless access points, eliminating the need for independent power supplies or electricians at the mounting point.

Layer 3 routing and deterministic network recovery
On the logical layer, the switch utilizes Layer 3 intelligence to maintain resilient network segmentation. Protocols like OSPF automate route updates in response to network topology changes, while Virtual Router Redundancy Protocol ensures automated failover to backup gateways, preventing localized hardware faults from cascading into broader segment outages.

For continuous industrial operations, the integration of ITU-T G.8032 Ethernet Ring Protection Switching enables the network to restore ring connectivity in under 50 milliseconds. This rapid recovery ensures that latency-sensitive traffic, including continuous SCADA polling, experiences no operational disruption. The switch supports Simple Network Management Protocol, Remote Network Monitoring, and Modbus TCP, allowing engineers to feed real-time network health diagnostics directly into existing SCADA software platforms. Operating without internal cooling fans, the ruggedized platform withstands extreme temperatures ranging from -40°C to 75°C.

Additional Context: Edge network scalability and 10G transitions
Industrial control systems and remote surveillance networks are actively transitioning from legacy 1G architectures to 10G backbones to accommodate the exponential growth of data from high-definition IP cameras and continuous IoT sensor streams. Previously, powering heavy-duty edge devices required midspan PoE injectors or separate electrical runs, which added points of failure. The implementation of 100W PoE++ directly within a distribution switch eliminates these intermediary devices. Furthermore, pushing Layer 3 routing capabilities closer to the edge—rather than backhauling all traffic to a core router—reduces latency and isolates broadcast domains, preventing network-wide congestion and significantly improving overall cybersecurity posture.

Edited by Lekshman Ramdas, InduPortals editor – adapted by AI.

www.antaira.com
